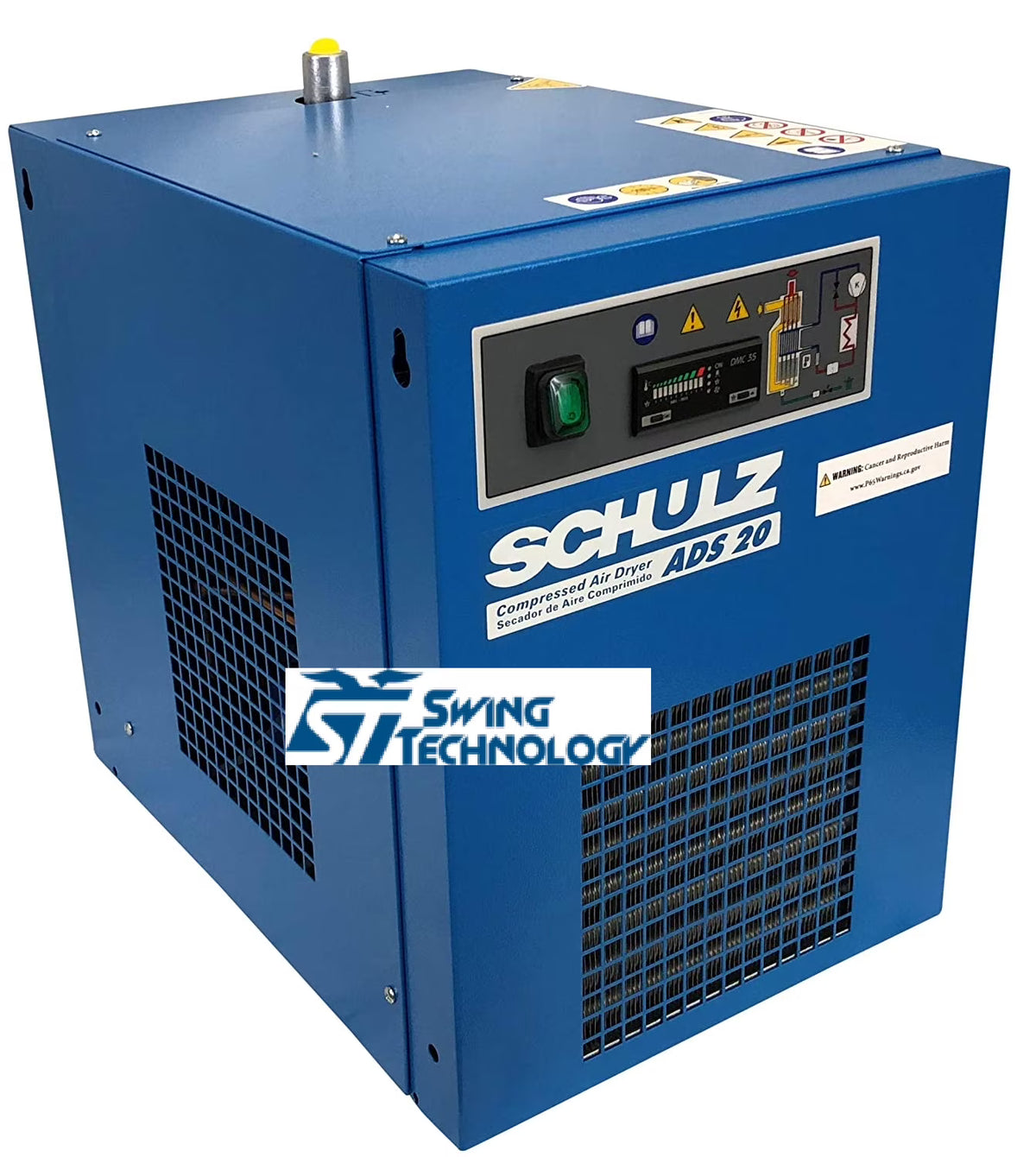

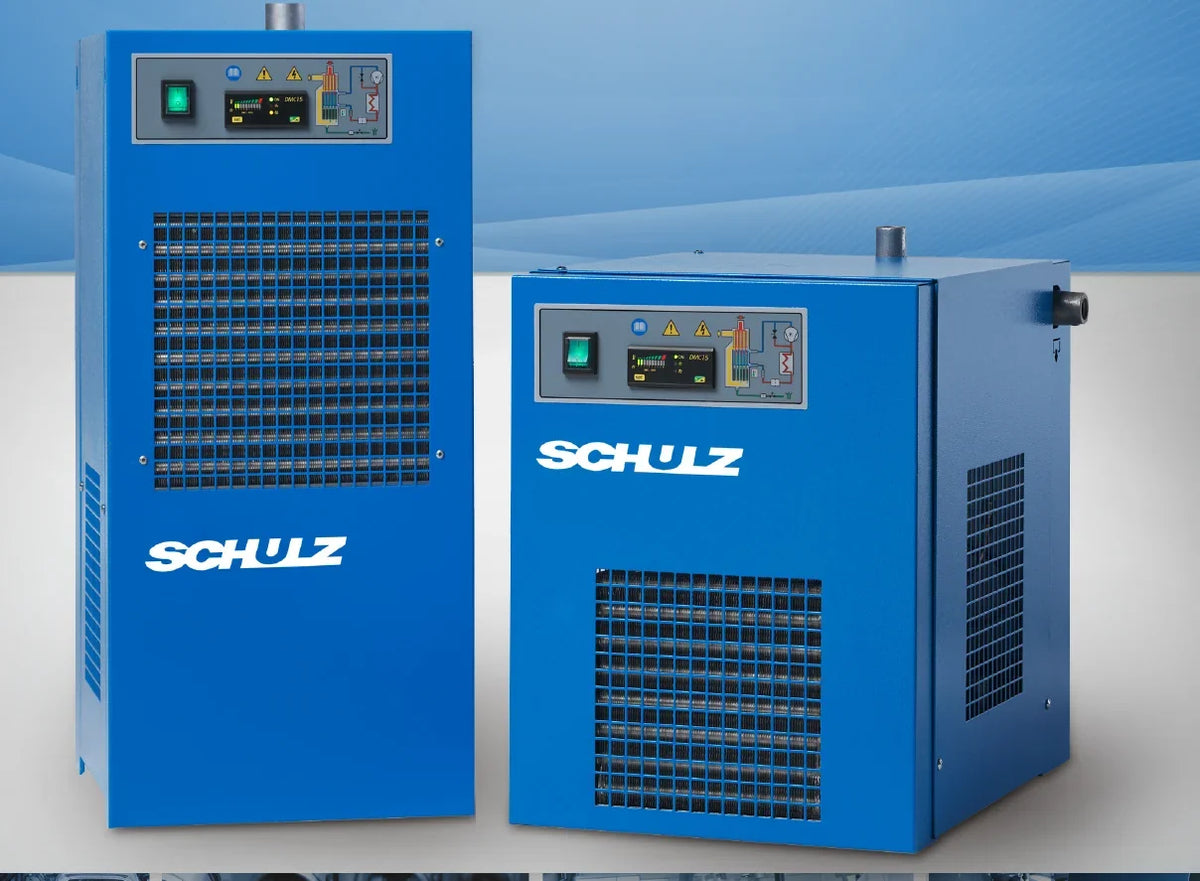

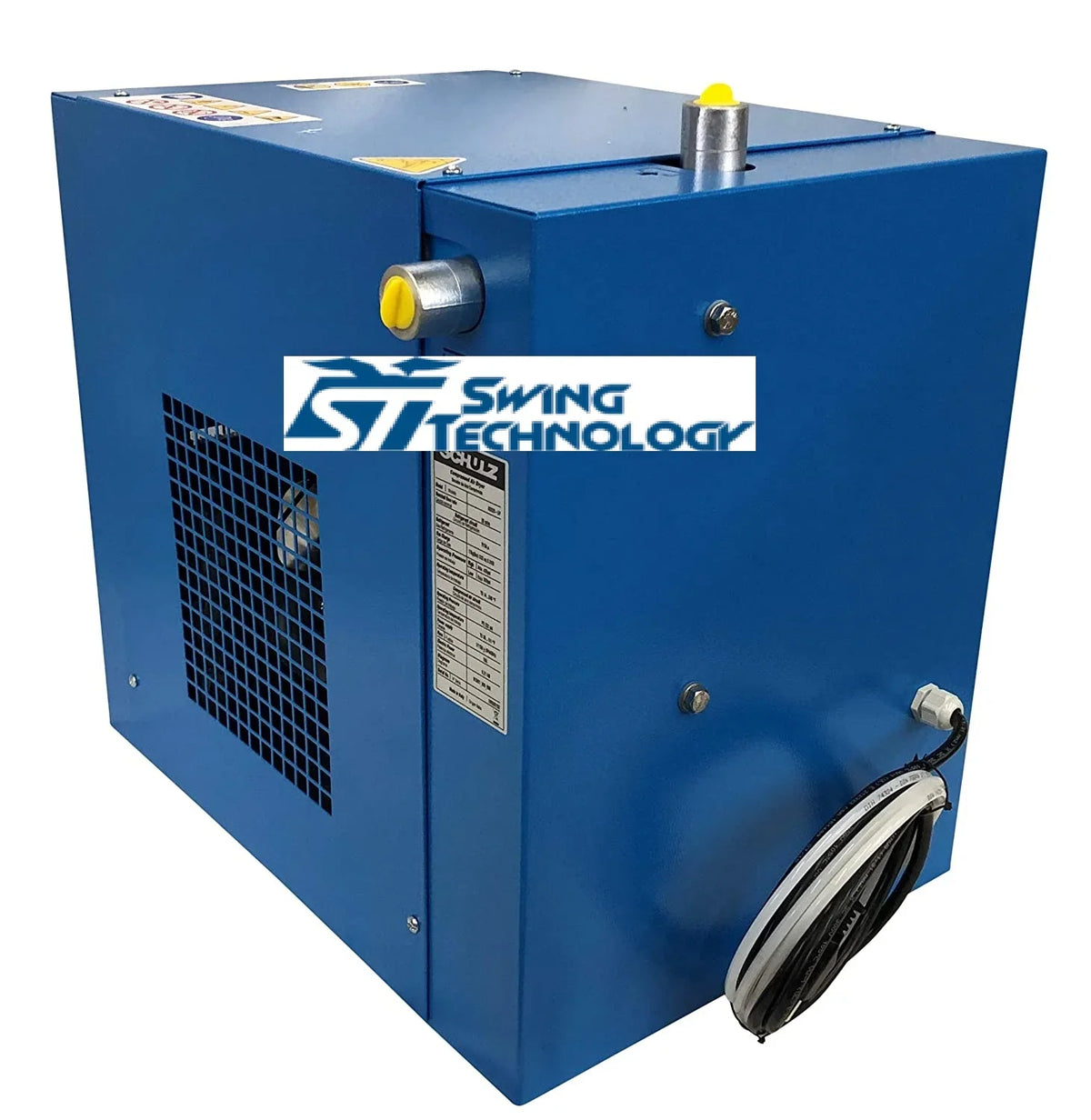

\n \n \n \n \n Schulz ADS 20 Non-Cycling Refrigerated Compressed Air Dryer (20-25 CFM 115V 1-Phase) \n1 YEAR WARRANTY. \n \n

Excellent Performance

\n

• \n
• Even where ambient & inlet temperatures are elevated
• \n
• Nominal air pressure of 100 PSI; 232 PSI maximum
• \n

\n

Energy Efficient Sizing

\n

• \n
• Matches the compressor's displacement, saving energy
• \n

\n

Electronic Controller

\n

• \n
• Digitally shows temperature & dew point
• \n
• Controls the drain valve through a timer
• \n
• Controls the condenser fan through a probe
• \n

\n

High-Efficiency Compressor

\n

• \n
• Circulates the refrigerant through the system
• \n

\n

Totally New Design

\n

• \n
• Delivers high dependability & low power consumption
• \n
• Quick disconnect automatic drain valve doesn't need special tools
• \n
• Requires a 115V, single phase circuit
• \n

\n

Environmentally Friendly Refrigerant

\n

• \n
• R134a is effective & easier on the environment
• \n

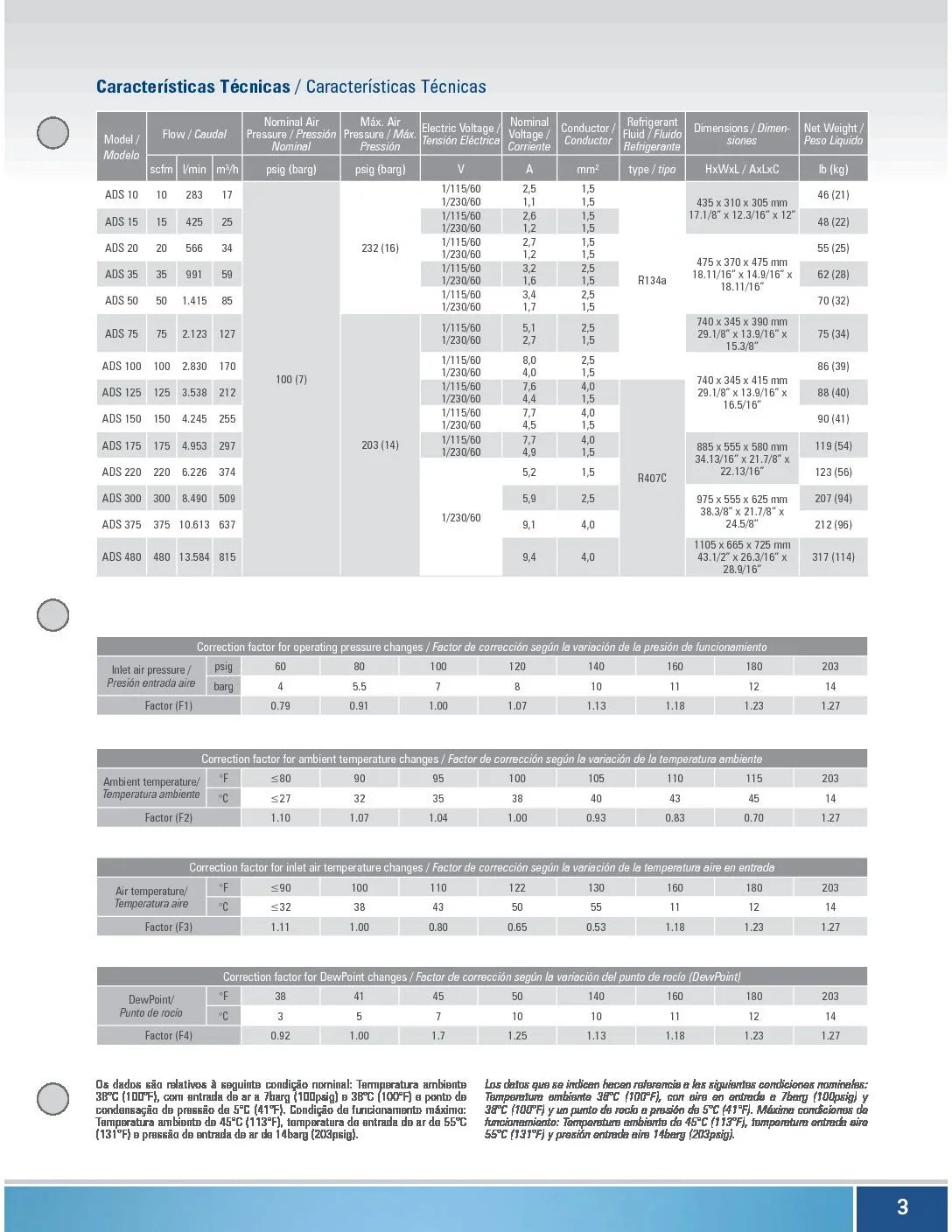

\n \n \n \nTechnical Features \n \n \n \nModel \nADS 20 \n \n \nFlow (CFM) \n20 \n \n \nRated Pressure (PSI) \n175 \n \n \nMaximum Pressure (PSI) \n232 \n \n \nConnection (in) \n1/2" NPT-F \n \n \nVoltage (V) \n115 \n \n \nRefrigerant Fluid \nR134a \n \n \nFrequency (Hz) \n60 \n \n \nPhase \nSingle \n \n \nNominal Voltage (A) \n2.7 \n \n \nDimensions (HxWxL in) \n19 x 15 x 19 \n \n \n \nhttps://schulzproducts.com/wp-content/uploads/2018/05/DRYER-SCHULZ.pdf \n \n \n \n \nschulz-refrigerated-air-compressor-dryer-20-25-cfm- ads-20-up
