Renogy 400W 12V Solar Panel Monocrystalline Bundle Kit for RV/Boat/Cabin/Battery Applications

Our Renogy 400W Monocrystalline Bundle comes with components that you will need to expand on a system you may already have, or just need some items to complete your system. Keep in mind that this kit allows for the charge controller to be close to the solar panel so depending on your situation, you may still need an extension cable or longer wiring.

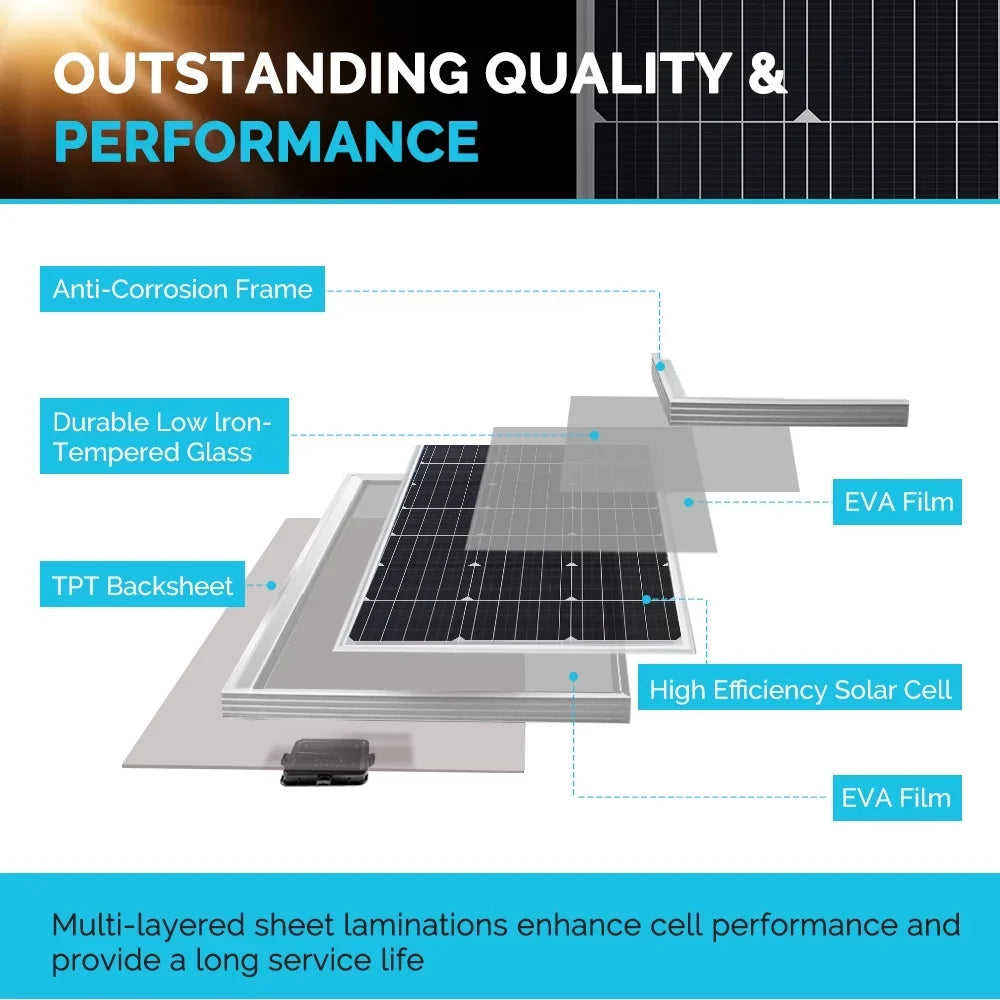

• 【Efficient Performance�?The Starter Kit will produce an average of 2kWh of electricity per day (Based on 5 hours of direct sunlight condition). The Cell Efficiency can reach 22%. The bypass diode can ensure the panel has an excellent performance in a low-light environment and the TPT back sheet dissipates excess heat to ensure smooth output performance. 【Solid Quality�?Advanced encapsulation material with multi-layered sheet laminations protects cells from physical damage or distortion, improving cell performance and providing a long service life. 【Smart Function�?The Wanderer PWM Charge Controller is compatible with four different types of batteries: sealed, Gel, Flooded, and Lithium batteries. It also features advanced 4-stage charging (bulk, boost, float, and equalization) to ensure your battery is efficiently and safely charged to 100%. 【Full System Protection�?The Wanderer PWM Charge Controller has built-in protection to safeguard your systems, such as reverse polarity protection, battery overcharging protection, overload protection, and short circuit protection. 【Ready to Install�?This Renogy Solar Kit includes the equipment necessary for building a new system. The necessary cables, Z-brackets, Solar Y Branch Connectors and pre-drilled holes on the back frame of the panel allow fast and secure mounting.

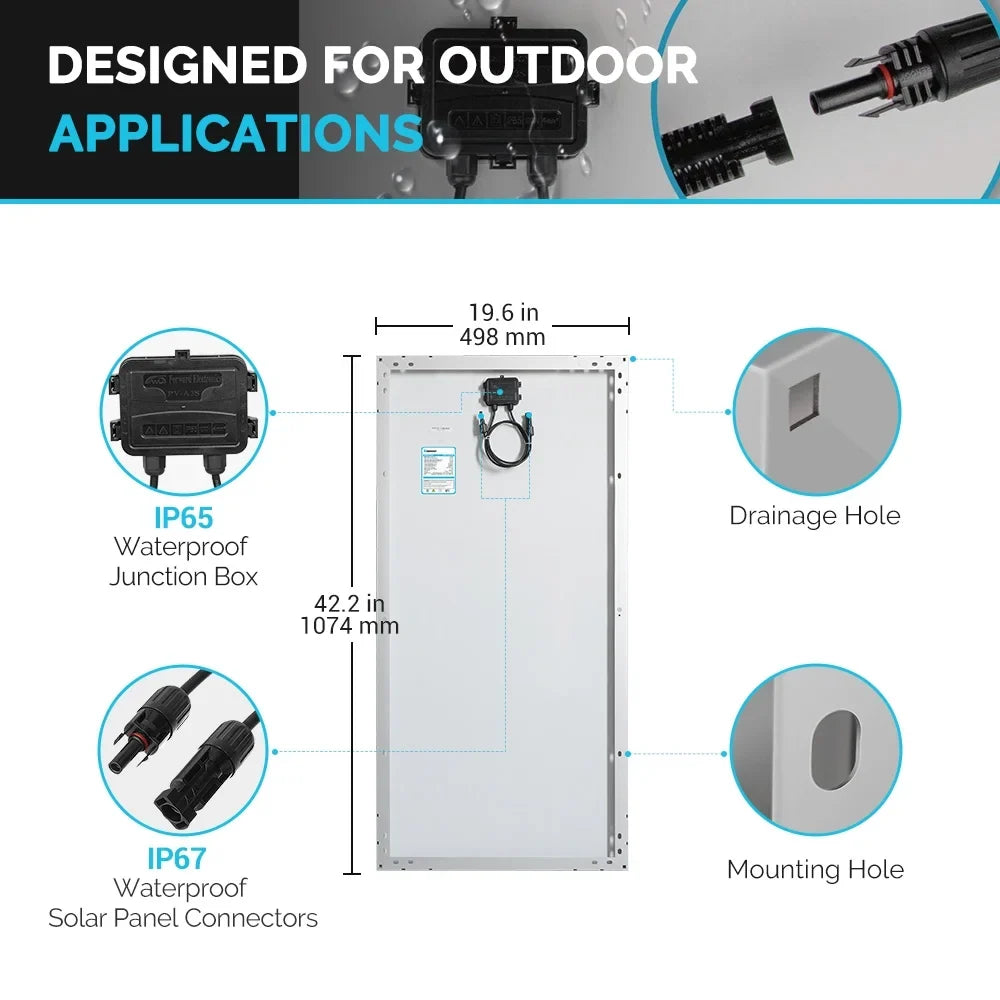

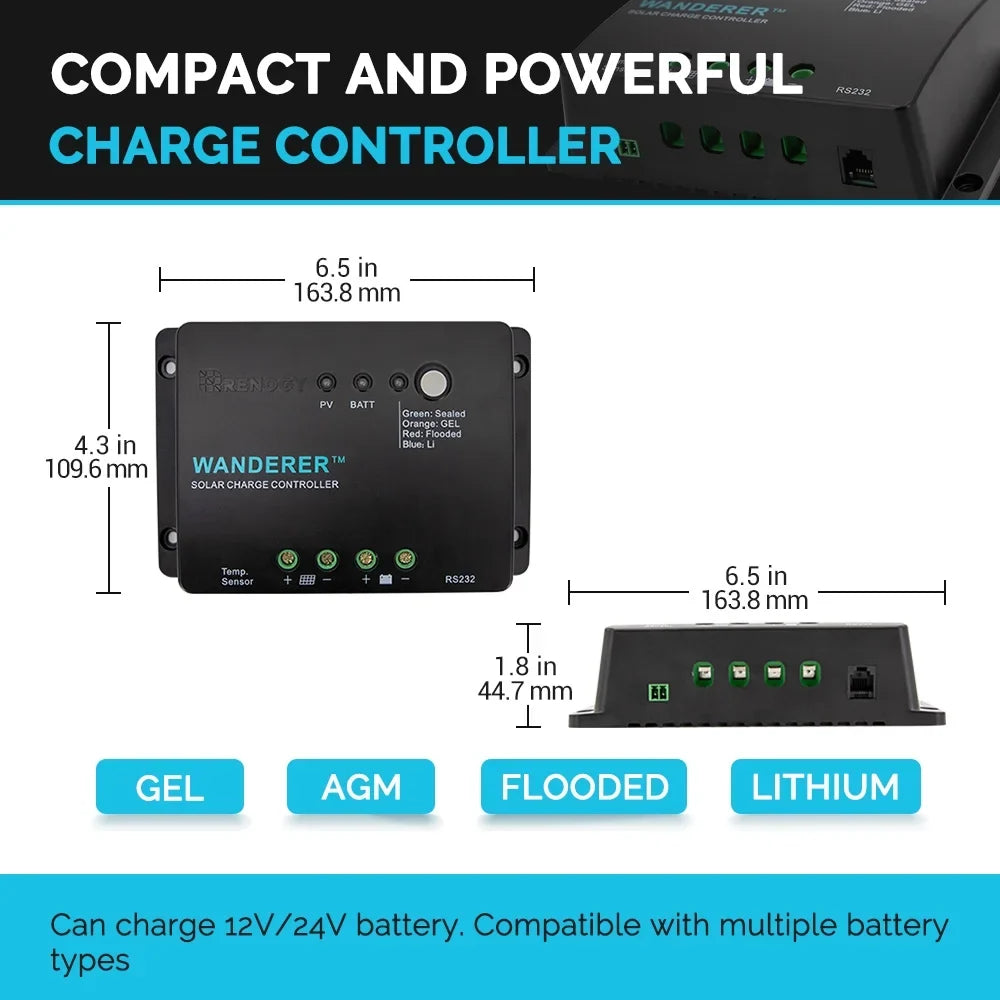

• s: RENOGY 100W MONOCRYSTALLINE SOLAR PANEL Maximum Power: 100W Open-Circuit Voltage (Voc): 24.3V Optimum Operating Voltage (Vmp): 20.4V Short-Circuit Current (Isc): 5.21A Optimum Operating Current (Imp): 4.91A Dimensions: 41.8*20.9*1.38in/1062x530x35mm Weight: 14.1lbs/6.4kg RENOGY WANDERER LI - 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER Nominal Voltage: 12 VDC Rated Charge Current: 30A Max. PV Input Voltage: 25 VDC Max. PV Input Power: 400W (12V) RENOGY SOLAR Y BRANCH CONNECTORS Withstanding Voltage: 1000V DC(TUV), 600V(UL) Protection Degree: IP67, mated Wiring Size Range: 10, 12, 14 AWG Temperature: -40°F to +195°F

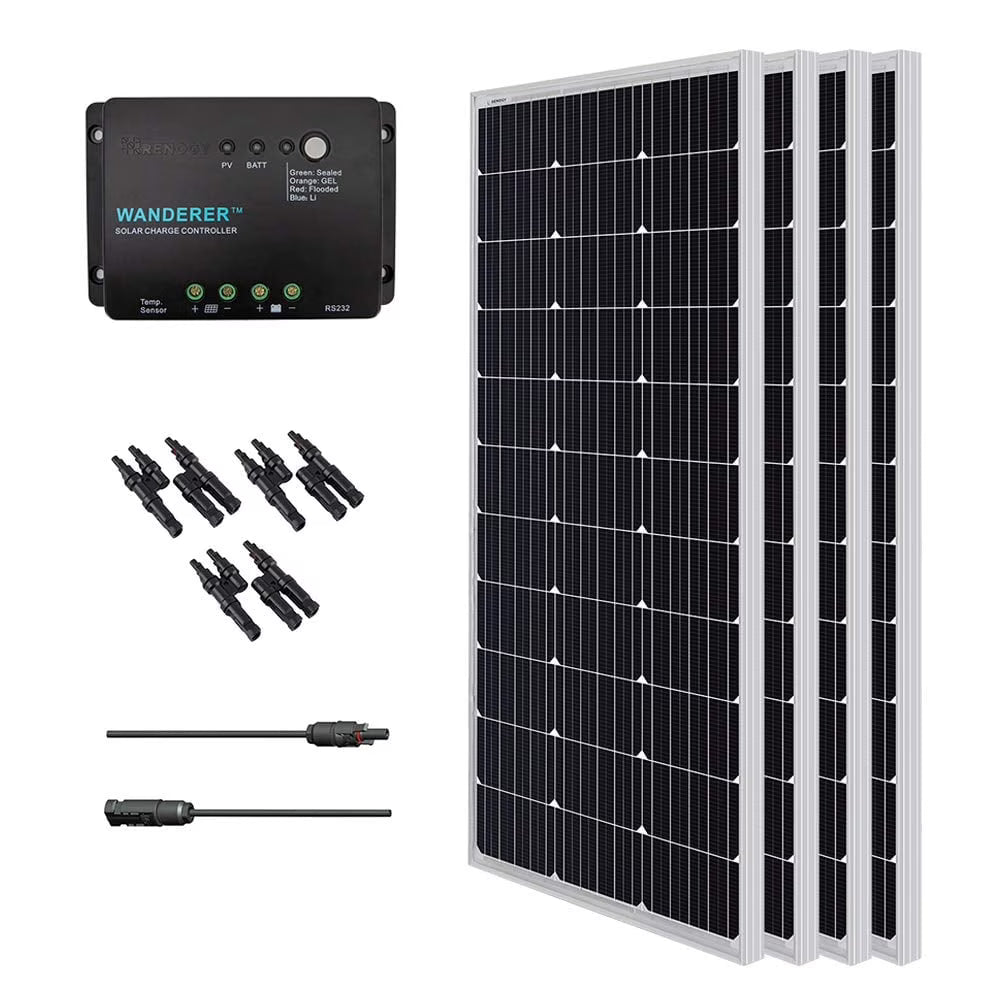

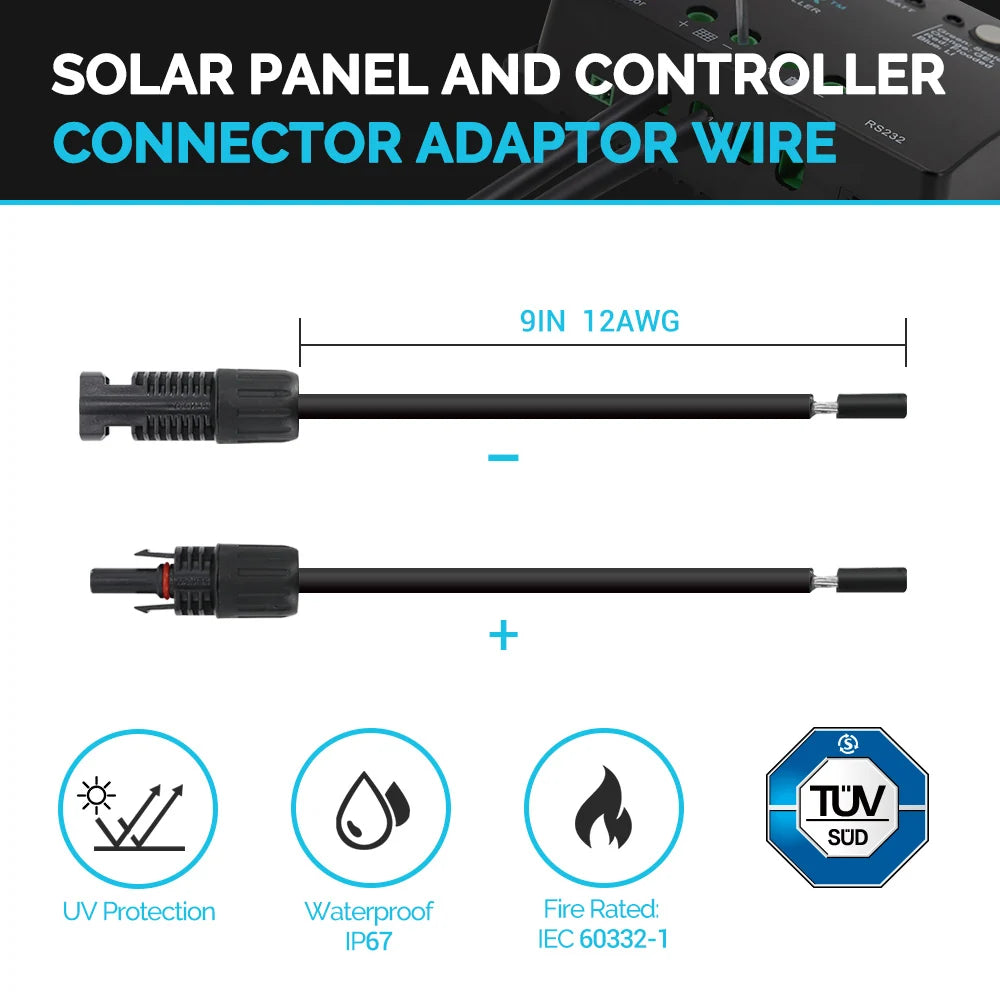

• Package Includes: 4 x 100W Mono Panel 3 x Renogy Solar Y Branch Connectors 1 x Renogy 20ft 10AWG Solar Adaptor Kit (A pair) 1 x Renogy Wanderer Li 30A PWM Charge Controller
